intelligent traffic signal controller：Equipped with a built-in central control system, the outdoor c

Consultation

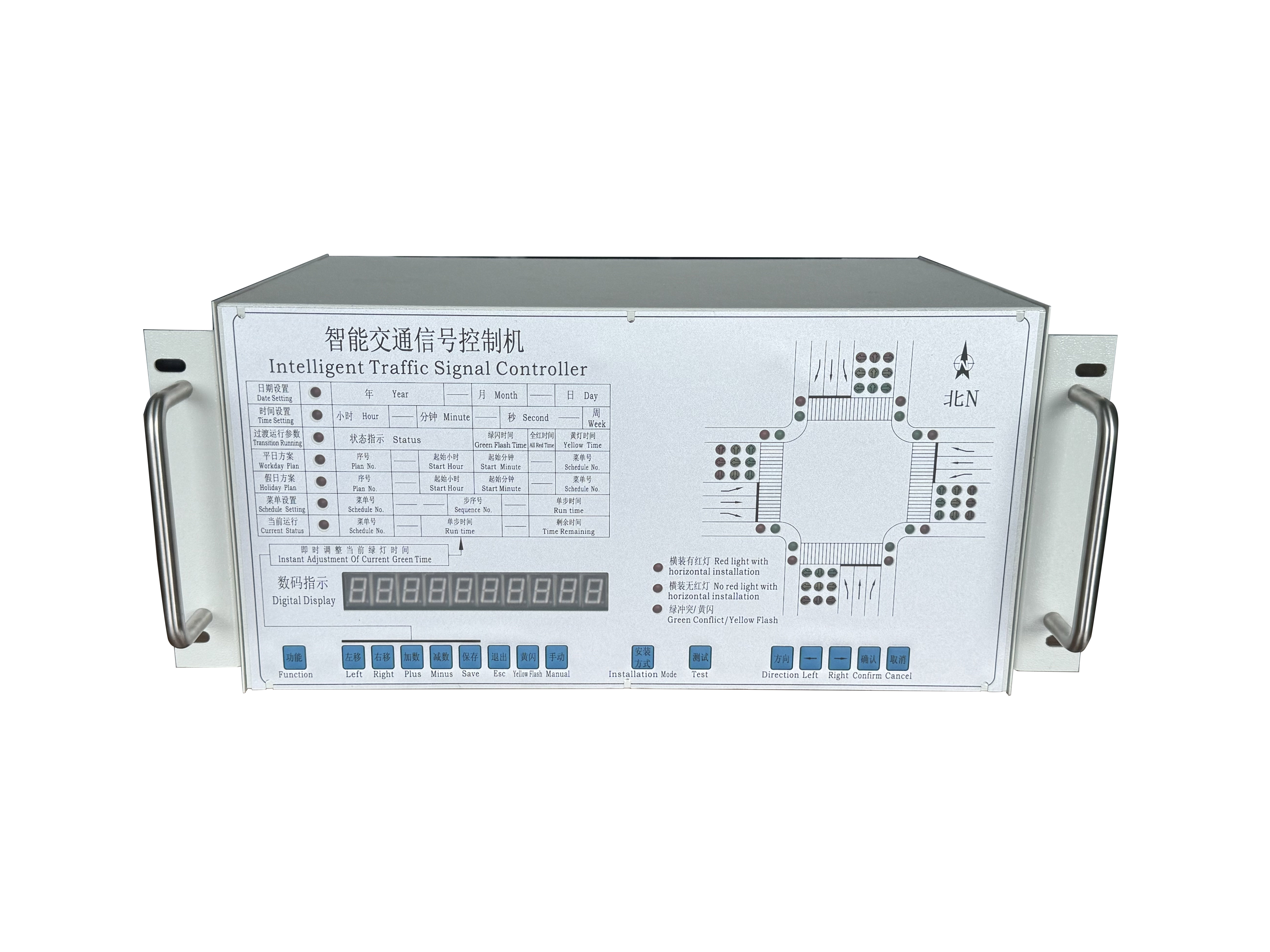

intelligent traffic signal controller：

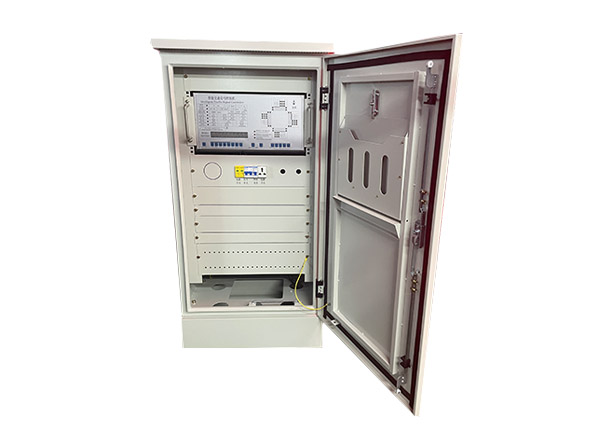

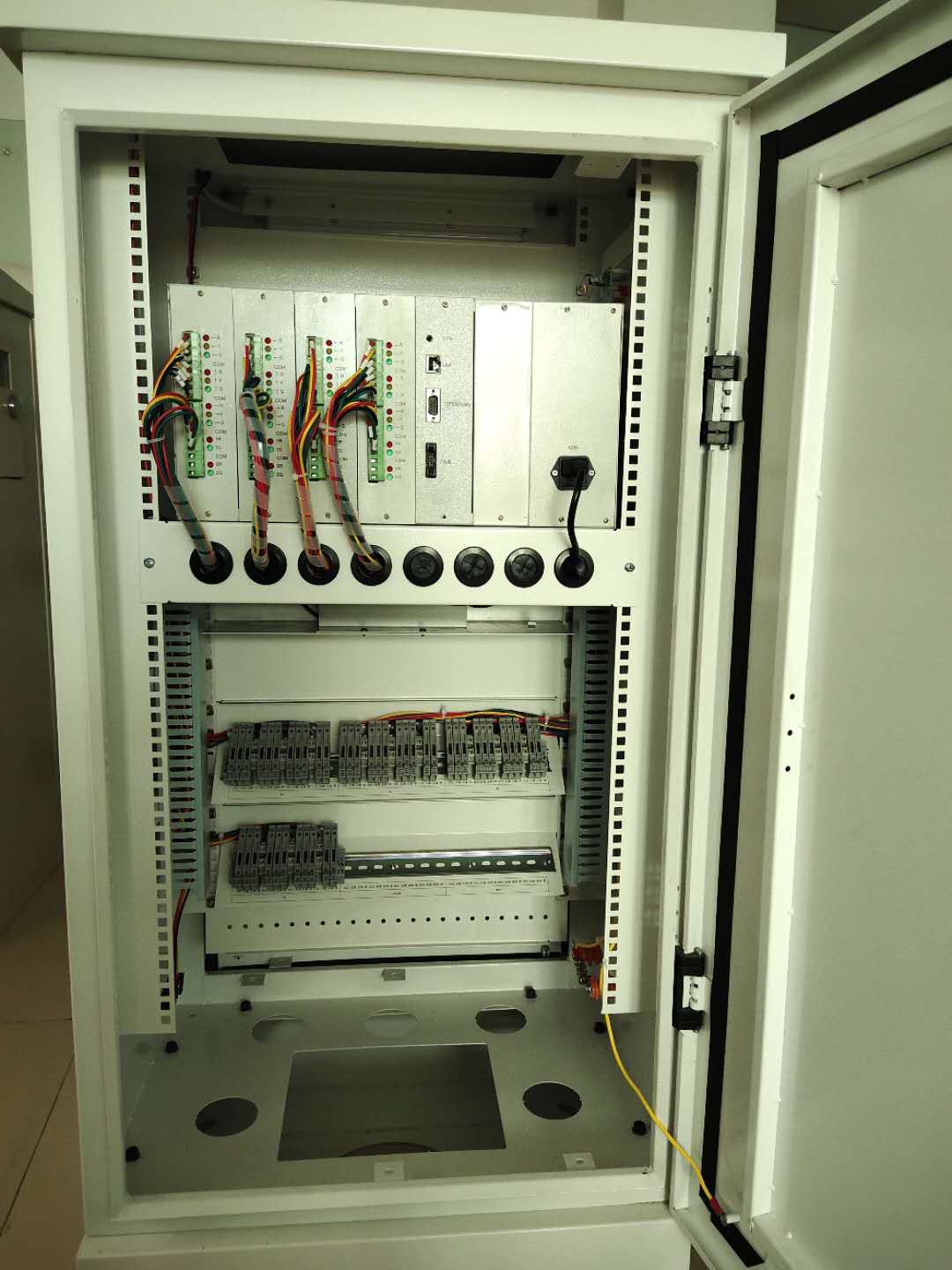

Equipped with a built-in central control system,

the outdoor cabinet is more reliable and stable.

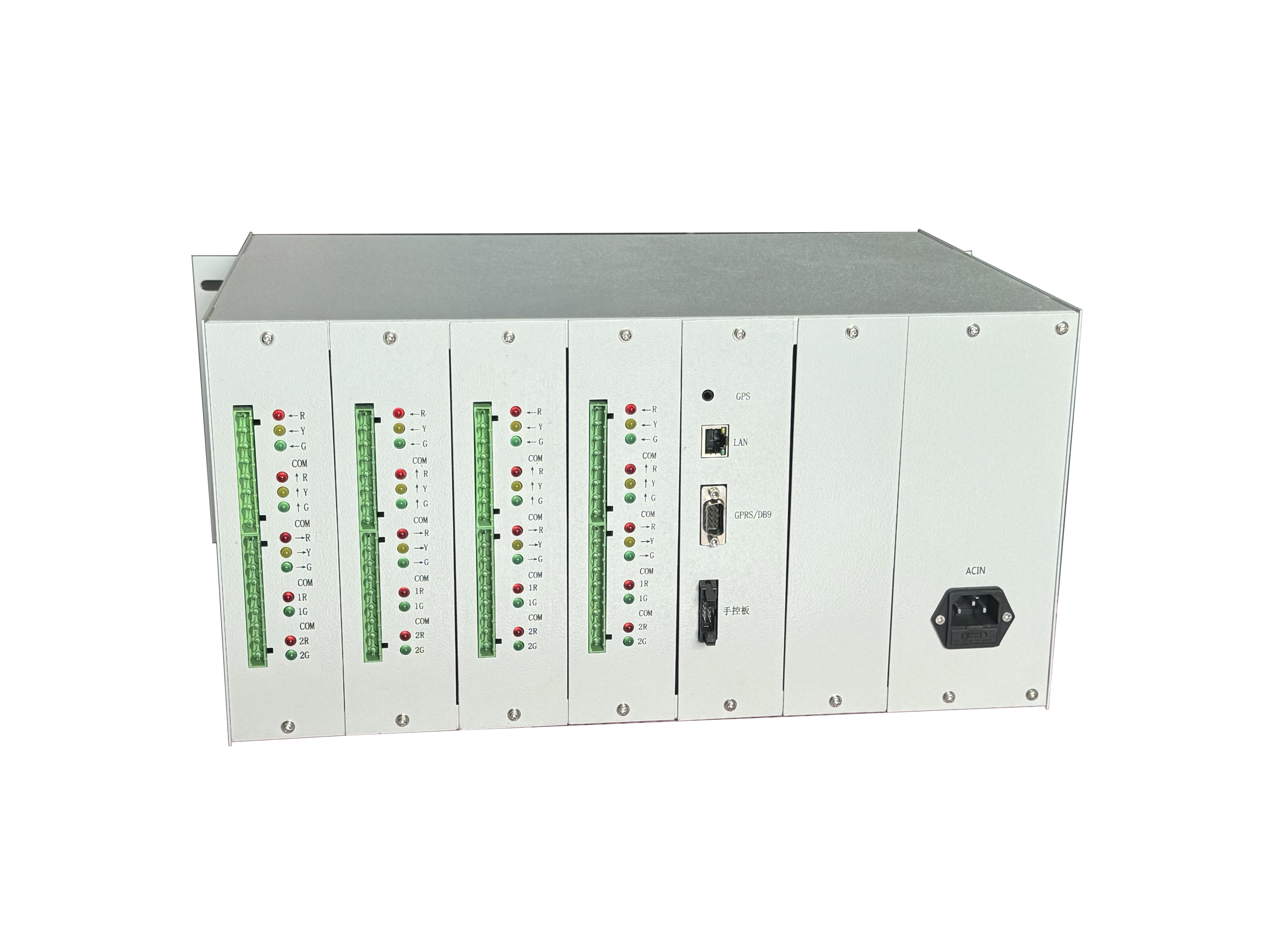

It is designed with modular design for easy maintenance and functionality expansion.

It also features lightning protection and power filtering devices.

The working hours can be set as 2*24 on weekdays, weekends, and holidays,

with 32 work menus that can be adjusted at any time.

Product advantages:

Each menu can contain 24 steps, with each step's time set between 1 and 255 seconds

Being able to enter the emergency yellow flashing state at any time.

Manual control can be achieved through random selection or the current running menu.

Technical parameter:

Operating voltage	AC110V/220V±20%(switched by switch)
Operating frequency	47Hz~63Hz
No-load power	≤15 watts
Each output drive capability	2A
Rated load power of the whole machine	2200 watts
Inrush current per path	≥100A
Maximum independent output channel	44
Maximum independent output mode	16
Work menu	32
The number of menus can be set	30

Maximum number of each menu	16
Maximum number of timers per day	24
Run time of each step	1 to 255 seconds
All red transition time	0 to 5 seconds
Yellow light change time	0 to 9 seconds
Green flashing time	0 to 9 seconds
Operating temperature	- 40 ℃ ~ + 80 ℃
Relative humidity	< 98%
Time error	Annual error <2.5 minutes (25±1℃)
Outer cabinet size	1240630500 mm
